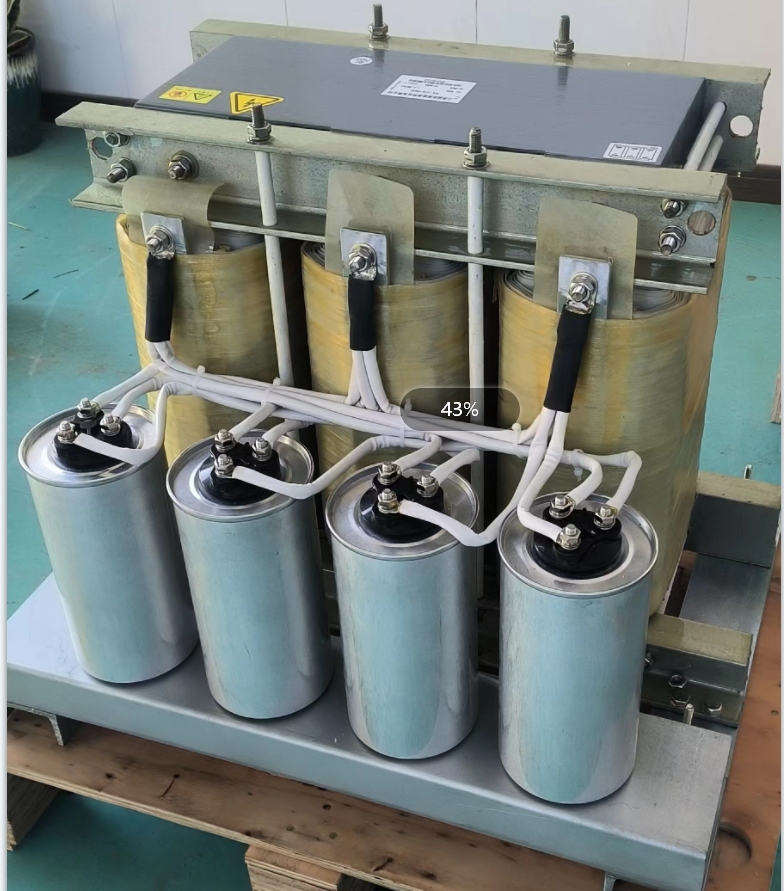

1.  產品簡述 (Product Pro?le)

 將電動機的PWM輸出信號轉化為低剩余紋波電壓的光滑正弦波，防止對電機的繞組絕緣造成損害。減少了因電纜線長而出現的分布電容和分布電感產生共振的現象;消除高dv/dt而造成的電機過電壓;消除渦流損耗造成的電動機提前損壞;濾波器降低了電動機的可聽噪音。

    Sinus Filter is designed to convert the PWM output signal of motor drives into a smooth sine wave with low residual ripple so as to avoid the motor insulation damage,reduce the resonance phenomenon caused by thedistributed cap6acitance and inductance due to the long cable, eliminate the excessive motor voltage caused by high dv/dt,eliminate motor damage caused by eddy loss and reduce the noise of motor by ?lter application.

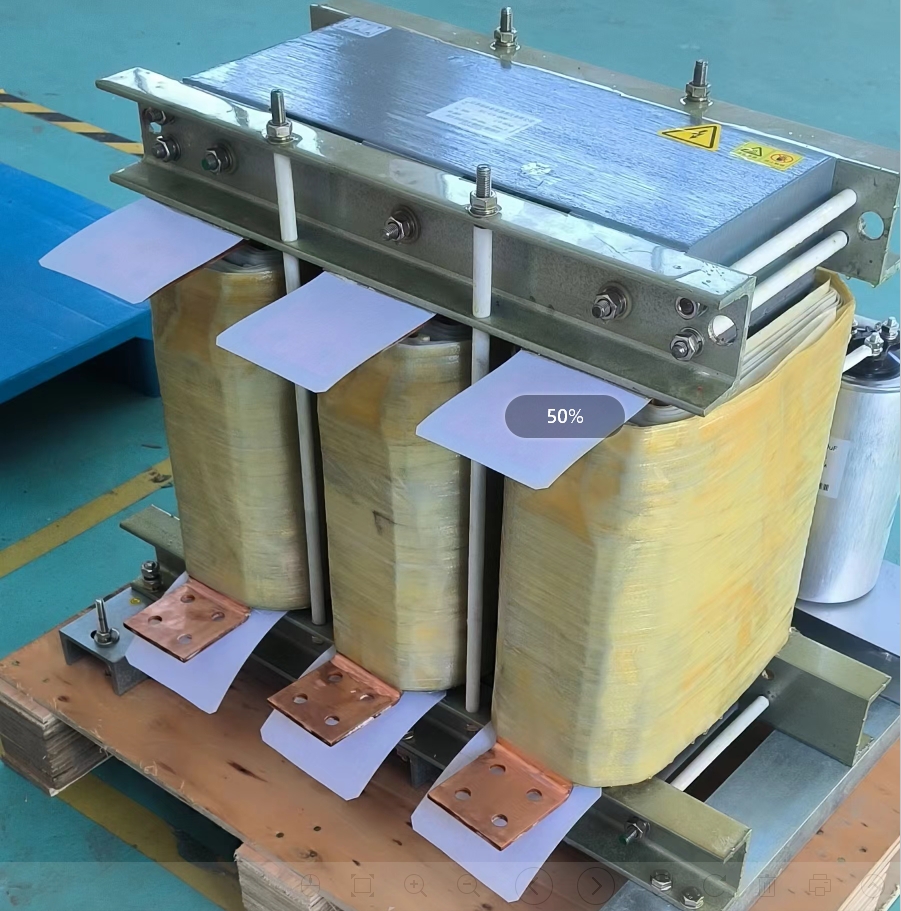

2.產品特點 (Product Features)

  采用了高性能的箔式繞組結構，銅排引出，具有直流電阻小，抗電磁力能力強，短時間過載能力強；采用高性能的F級以上的復合絕緣材 料，使產品在嚴酷的工作條件下依然可以保持可靠的性能；電抗器絕緣強度高，能承受極高的Dv/dt的電壓沖擊。電抗器采用真空壓力浸漬工藝，可聽噪音小。

    Due to the excellent foil winding structure and aluminum leading structure, Sinus Filter is characterized by small DC resistance, strong resistance to electromagnetic interference and strong short-time overload capability. F Class insulation materials equip the products with reliable performance even in harsh operating conditions;high insulation ability can sustain high Dv/dt voltage impulse to the reactor; process makes the humming noise low.

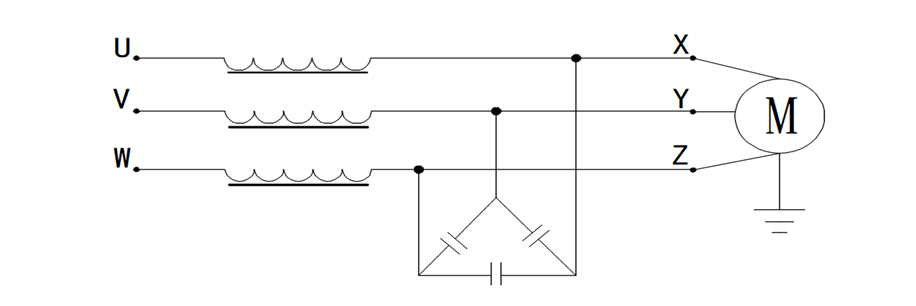

3. 電氣原理圖（Electrical Diagram）

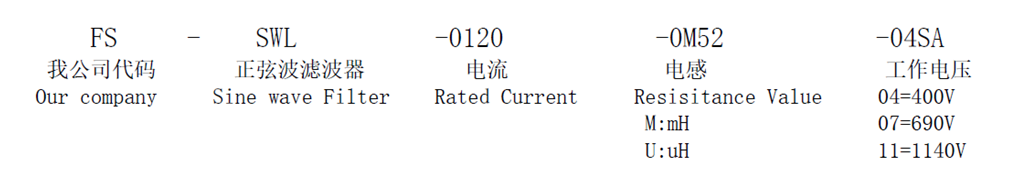

4.產品型號定義（Product identification）

5.  技術參數

1.  工作電壓:380VAC-690VAC

2.  工作電流:15A-1500A

3.  工作頻率:50/60Hz.

4.  載波頻率:2K-4k

5.  絕緣等級:class H

6.  壓降:8%-12%

7.  電壓諧波畸變失真THDU<5%

8.  空載電流<8%

9.  使用環境:-10…+45 ℃,額定值不會降低。

10. 防護等級:IP00

11. 最大電流:1.5x額定電流，持續60S

12. 噪 音:<65dB

13. 溫升：≤75K

14. 抗電強度:鐵芯-繞組 3000VAC/50Hz/5mA/10s無飛弧擊穿(工廠測試)

15. 絕緣電阻:1000VDC絕緣阻值>100MΩ

16. 海拔高度不超過2000米。

17. 運行時溫度25℃~+150℃，相對濕度不超過90%。

18. 周圍環境應有良好的通風條件，如裝在柜內，應加裝通風設備。

Technical Requirement

1.  Work Voltage:220VAC-690VAC

2.  Work Current:15A-1500A

3.  Work Frequency: 50/60Hz

4.  Swltching frequency:2-4KHz

5.  Insulation Class: class  H

6.  Rated voltage drop:8~12%

7.  Voltage harmonic distortion：THDU≤5%

8.  Load current≤8%

9.  Operation Environment:-10~+45 C,rated value wont’t lower,when higer than 55 ℃and every lc,the current will step down 2%

10. Protectlon class:IP00-lP22

11. Max Current: 1.5 xRated current,continuous 60S

12. Noise:≤ 65dB

13. Temperature Rise:75K

14. Dlelectric strength: Core Col 3000VAC/50Hz/5mA/10s no electric arcing puncture (factory test)

15. insulation Resistor:1000VDC insulation resistance value ≥100MΩ

16. Under seal level 2000m

17. Running  temperature 25 ℃-+150 ℃,comparative malsfure not over 90%.

18. With well-ventilated condition,ventilation devices shall be mounfed if installatioh in panels

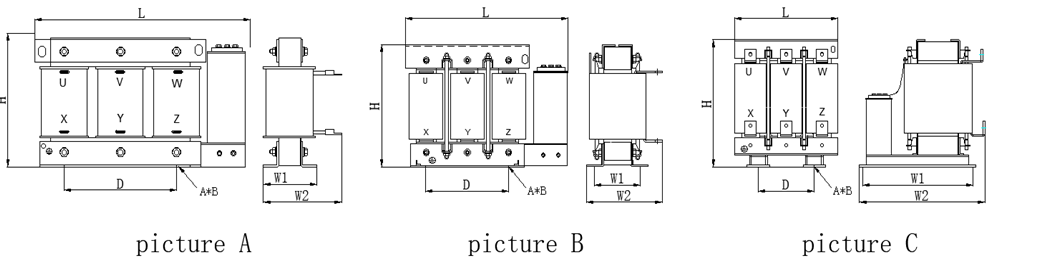

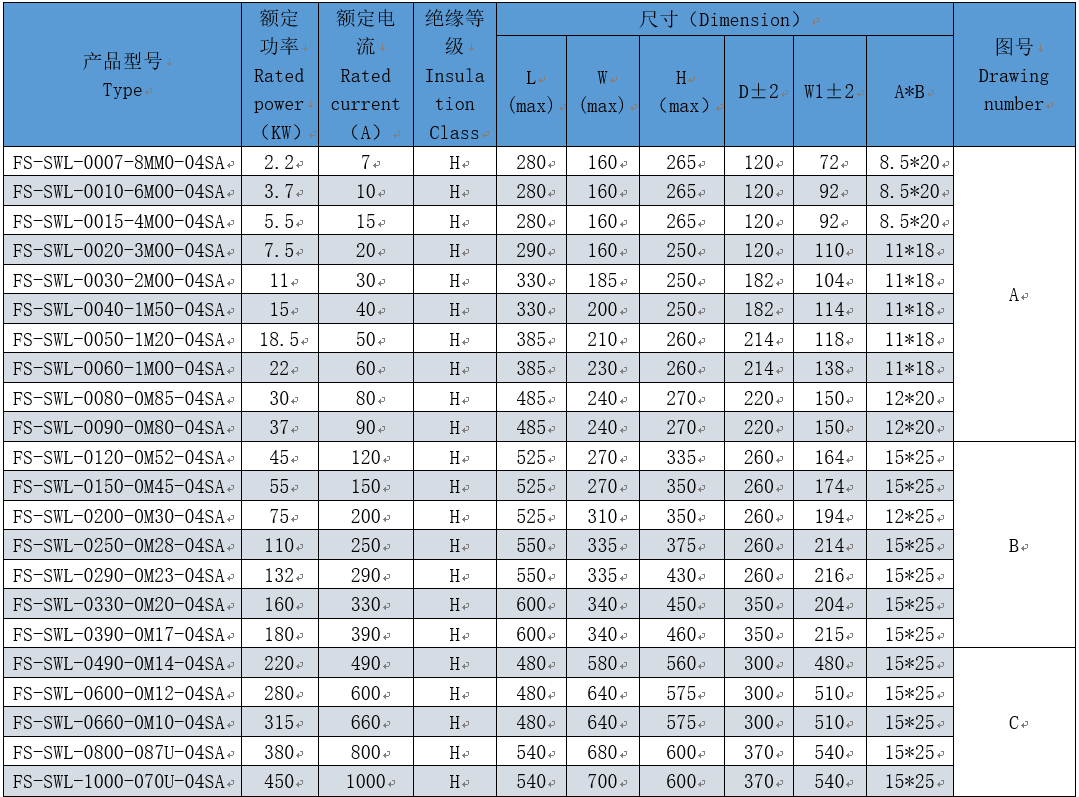

6.濾波器尺寸【Filter size】（380-415V Sine wave Filter）
