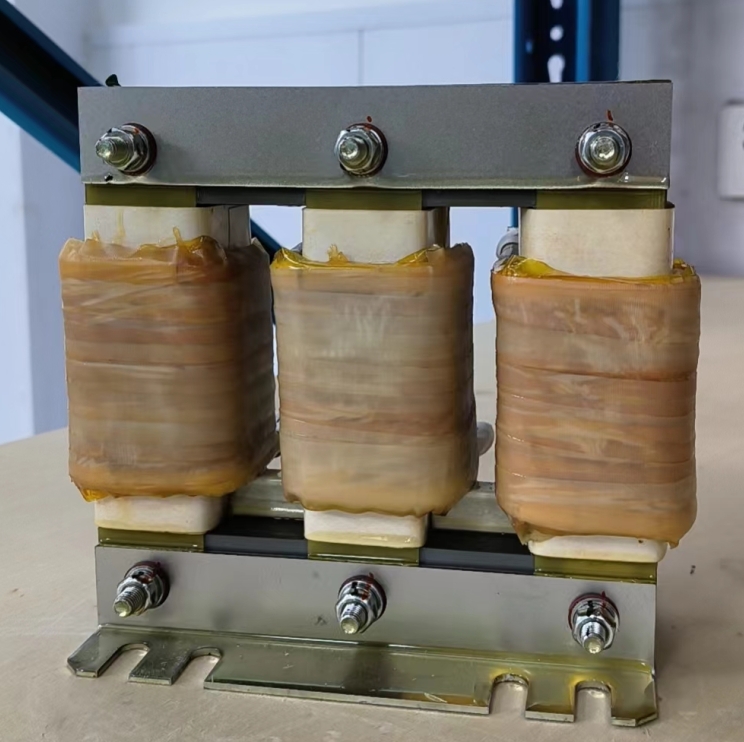

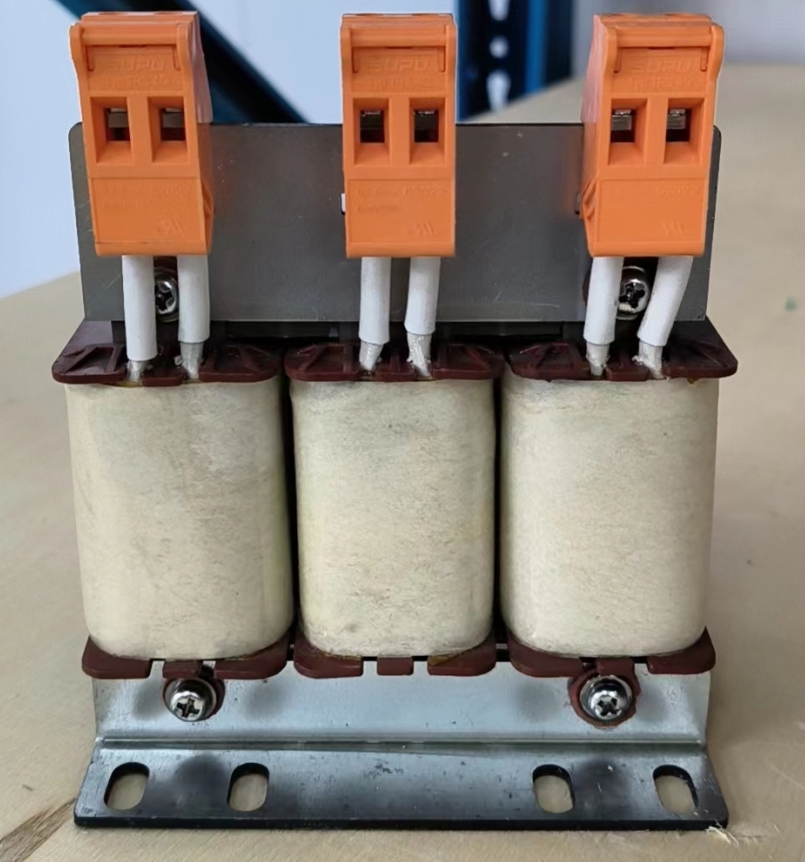

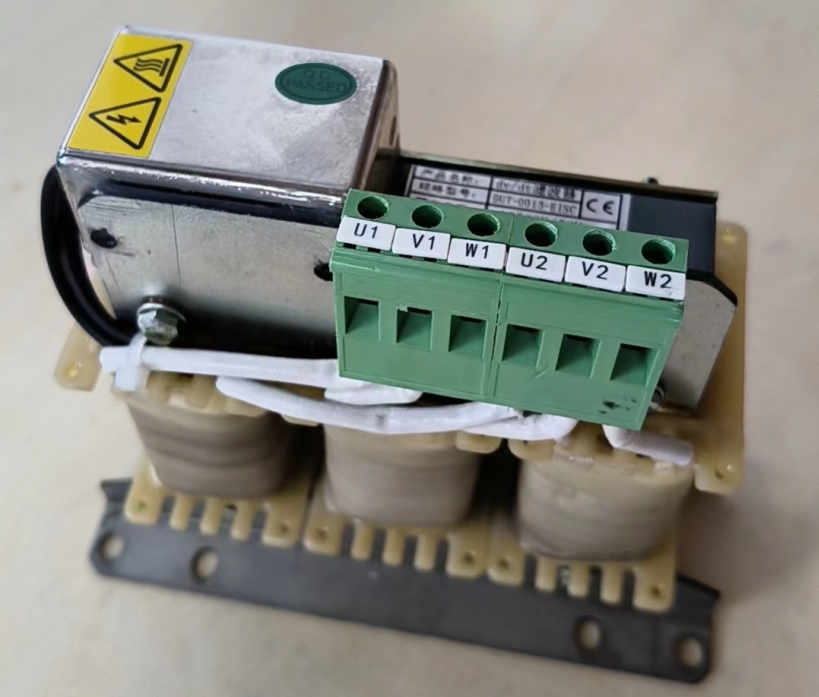

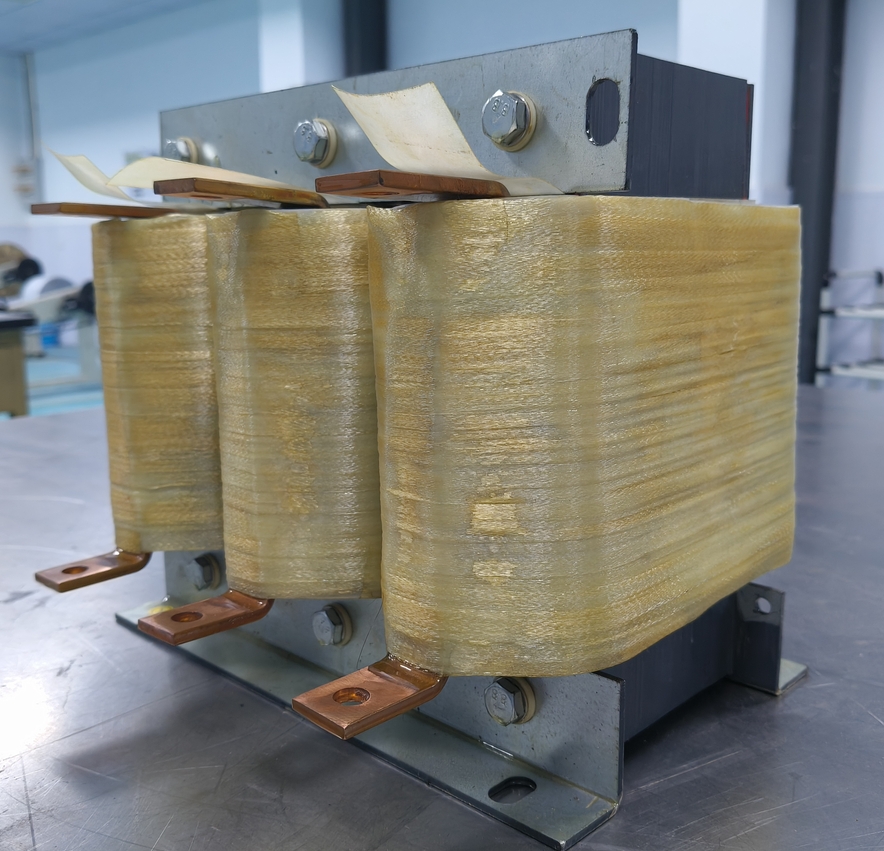

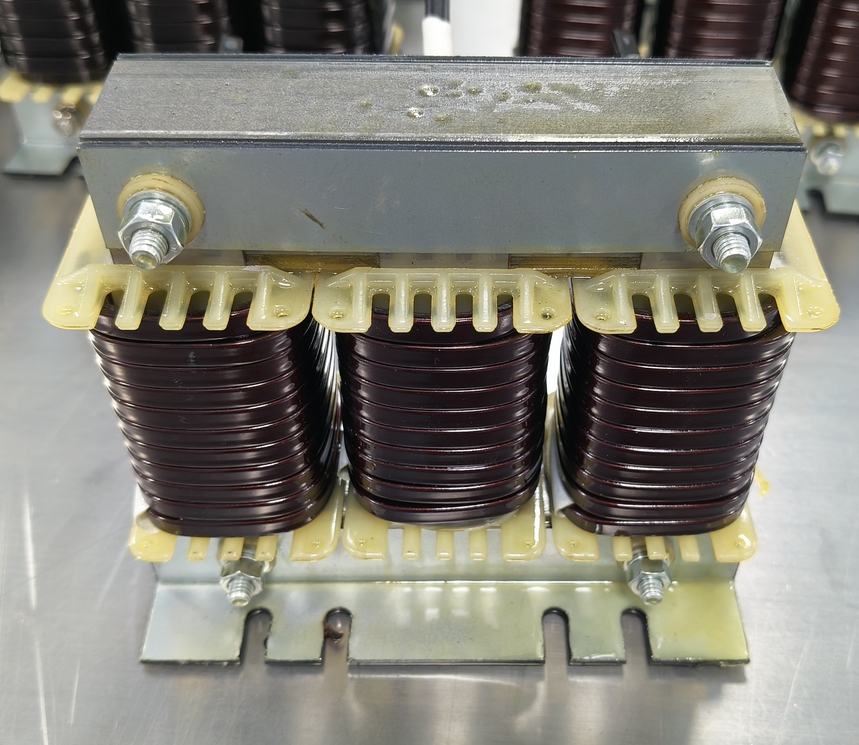

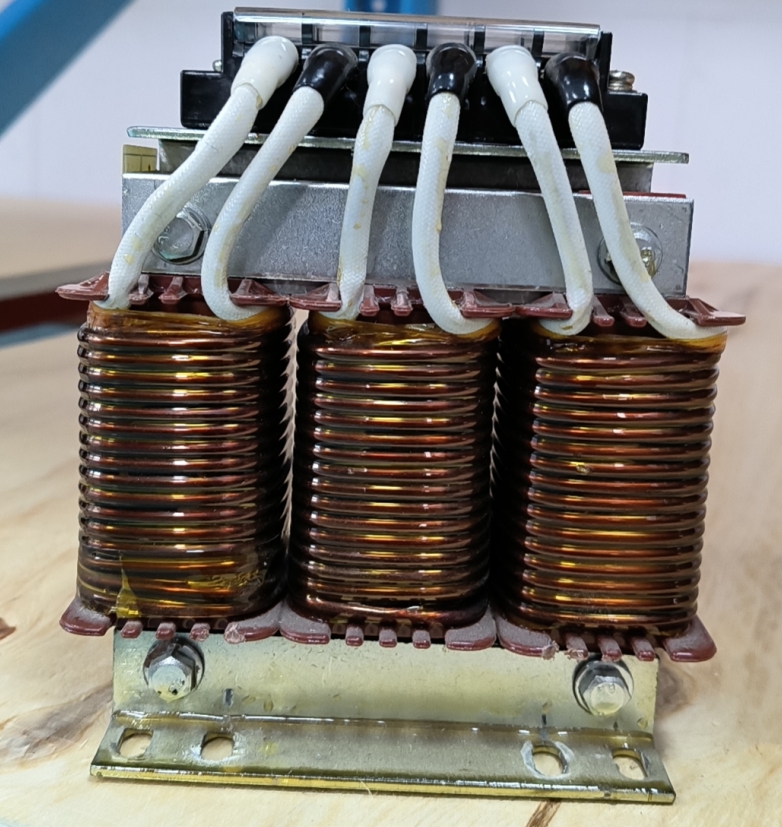

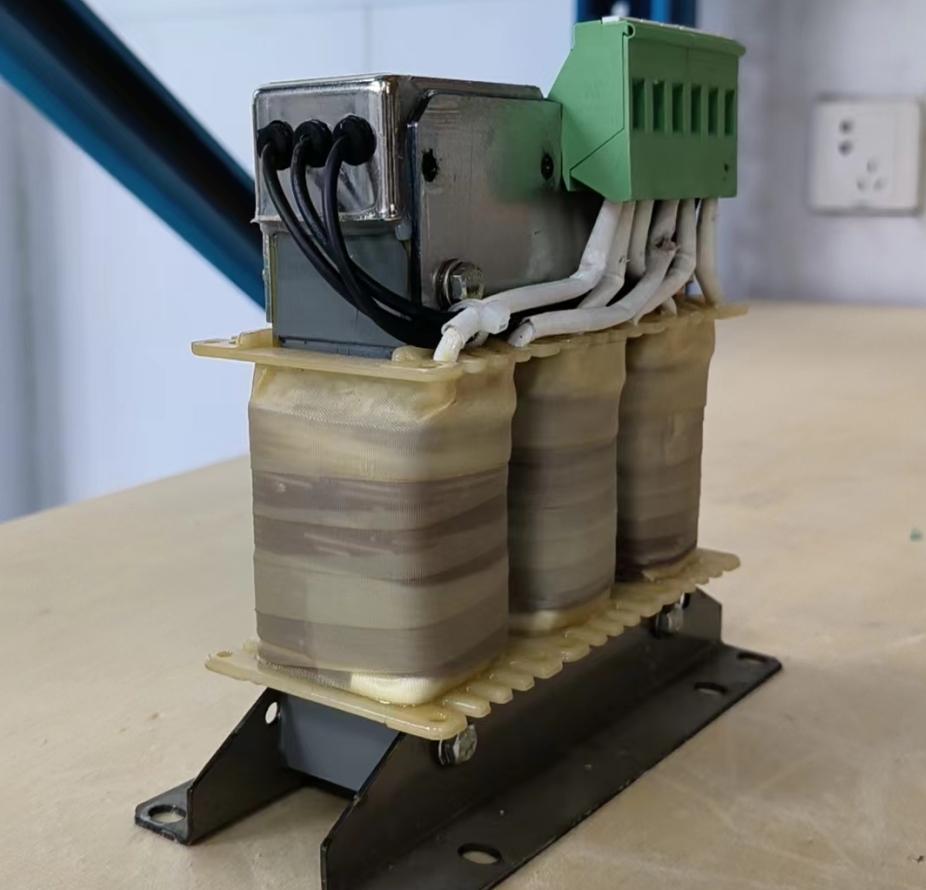

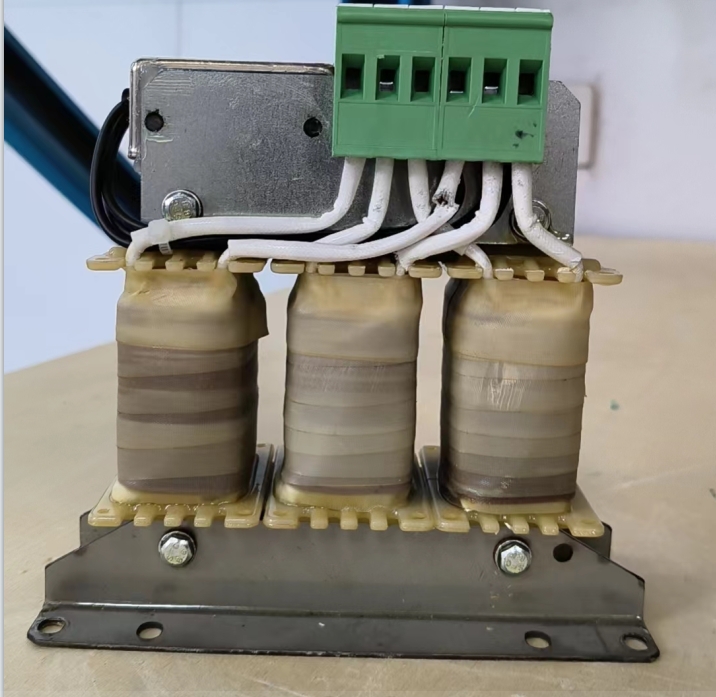

1.產品概述(Product Introduction)

PWM逆變器直接驅動電機時會產生較高dv/dt的共模電壓,并由此產生軸承電流和共模漏電流以及嚴重的電磁干擾(EMI).特別是當逆變器通過長線電纜與電機連接時,由于電纜中分布參數的影響,會在電機端產生電壓反射現象,從而在電機端會產生2倍以上的過電壓,導致線圈絕緣失敗. dv/dt濾波器可以降低電機電纜傳輸線效應電壓的增大而衰減率，并最大限度地減少在電機端子上所發生的峰值電壓。

When PWM inverter drives the motor directly, it produces a high common mode voltage of dv/dt, resulting in bearing current and common mode leakage current, as well as serious electromagnetic interference (EMI). Especially when the inverter is connected to the motor through the long line cable, due to the influence of the distribution parameters in the cable, the voltage reflection phenomenon will occur at the motor end, which will produce more than 2 times the overvoltage at the motor end, resulting in coil insulation failure. dv/dt filter can reduce the attenuation rate of the increase of the transmission line effect voltage of the motor cable. And minimize the peak voltage that occurs on the motor terminals

2.產品應用(Product Application)

dv/dt濾波器是設計用于保護電機的濾波器，由于變頻器與電機之間運行電纜過長會引起對電機產生毀滅性影響峰值電壓。電纜的長度取決于用在變頻器中的電力半導體的開關次數和電機的大小，如果電纜短到2.5米則會導致電機承受的峰值電壓超過電機絕緣系統的額定值。然而，如果電纜太長則問題更大，在這種情況下就需要用dv/dt濾波器來保護電機不受峰值電壓的毀滅性影響。

The dv/dt filter is a filter designed to protect the motor, due to the length of the running cable between the inverter and the motor can cause a devastating effect on the motor peak voltage. The length of the cable depends on the number of switches of the power semiconductor used in the inverter and the size of the motor, if the cable

is short to 2.5 meters, it will cause the peak voltage of the motor to exceed the rating of the motor insulation system. However, the problem is even greater if the cable is too long, in which case dv/dt filters are needed to protect the motor from the devastating effects of peak voltages.

3.技術規格(TechnicalSpecifications)

1.最大工作電壓:400V AC-1140V AC

2.額定電流:5~500A

3.頻率:50-60Hz

4.開關頻率:2~8KHz

5.防護等級:IP00-P20

6.絕緣等級:class F,H

7.使用環境:-10…+45 ℃,額定值不會降低。最高可達+55℃，在45℃以上，每升高1℃，額定電流降低2%

8.最大電纜長度:1000m

9.最大電流:1.5x額定電流，持續60S

10.噪音:<65dB

11.溫升:<85K

12.抗電強度:鐵芯-繞組 3000VAC/50Hz/5mA/10s無飛弧擊穿(工廠測試)

13.絕緣電阻:1000VDC絕緣阻值≥100MΩ

14.海拔高度不超過2000米。

15.運行環境溫度-25℃~+45℃，相對漫度不超過90%。

16.周圍無有害氣體，無易燃易爆物品。

17.周圍環境應有良好的通風條件，如裝在柜內，應加裝通風設備。

1. Maximum operating voltage :400V AC-1140V AC

2. Rated current :5~500A

3. Frequency :50-60Hz

4. Switching frequency :2~8KHz

5. Protection level :IP00-P20

6. Insulation class :class F,H

7. Use environment :-10... +45 ℃, the rating will not be reduced. Up to +55 ° C, above 45 ° C, each increase of 1 ° C, the rated current is reduced by 2%

8. Maximum cable length :1000m

9. Maximum current :1.5x rated current, lasting 60S

10. Noise :<65dB

11. Temperature rise :<85K

12. Electrical strength: Core - winding 3000VAC/50Hz/5mA/10s no flare breakdown (factory test)

13. Insulation resistance :1000VDC insulation resistance ≥100MΩ

14. The altitude does not exceed 2000 meters.

15. The operating environment temperature is -25℃~+45℃, and the relative diffuse is not more than 90%.

16. There are no harmful gases around, no inflammable and explosive materials.

17. The surrounding environment should have good ventilation conditions. If installed in the cabinet, ventilation equipment should be installed.

4.執行標準(Applicable standards)

IEC289:1987 Reactor

GB10229-88 Reactor(eqvIEC289:1987)

JB9644-1999 Reactors used for semiconductor electrical driving

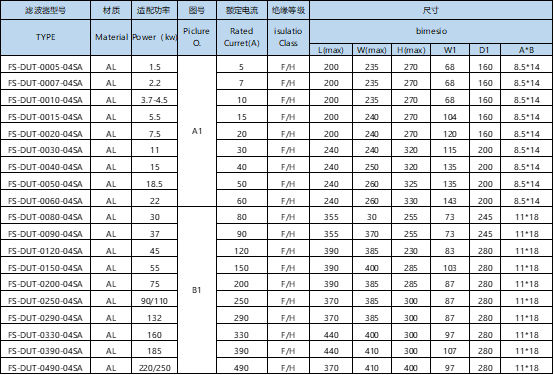

5.產品選型表（Product selection table）

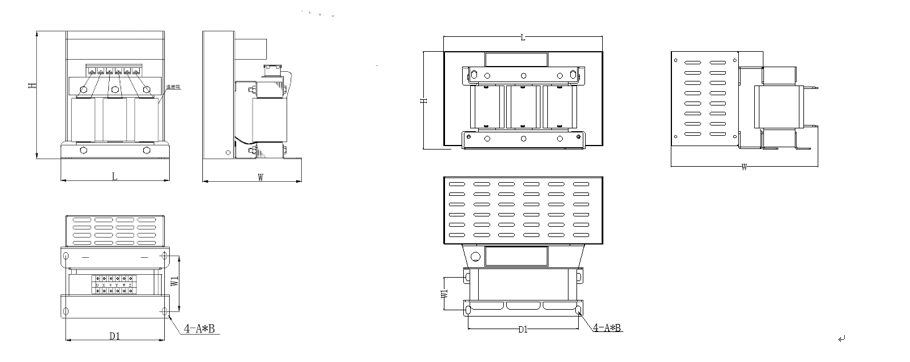

6.產品尺寸圖(Product size)
